Black Crowd Control Barrier System Concert Stage Barriers for Elegant Crowd Control

 Black Crowd Control Barrier System Concert Stage Barriers for Elegant Crowd Control

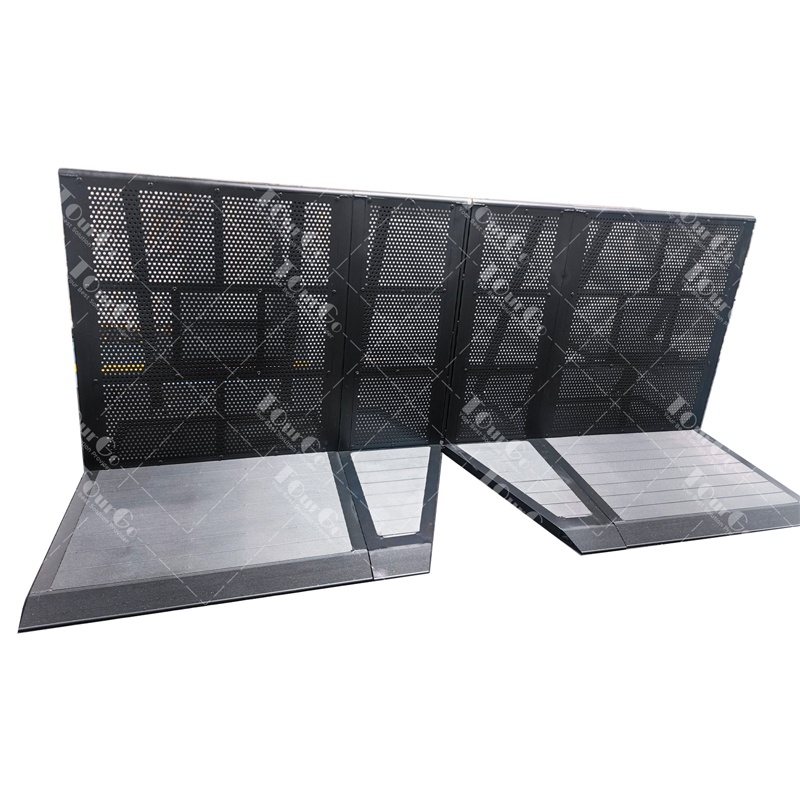

The Aluminum Barrier is a lightweight crowd control system made of aluminum. The Barrier has a self-weight of only 34 kg per 1 m section. The smooth round top bar and the bottom bar inside of slop incorporate a steel 15 mm slot pin that provides easy connection points for the Barriers. In order to strong the barricade connection, there are also 2 sets interlock and 2 sides bolt connection in case of uneven ground . All profiles have soft, rounded edges for maximum comfort. The design load of the barrier is 10528N/m1.

Material	Aluminum 6082-T6
Surface	Mill finish (silver) , black powder coated, etc.
Size (H × W × D)	1.2 m × 1.0 m × 1.2 m, customer sizes are also available.
Folding size (H × W × D)	1210 mm × 1100 mm × 180 mm
Top semi-circle tube	40 mm, 50 mm, thickness: 2 mm, 3 mm.
Frame tube	25 mm × 50 mm, 40 mm × 50 mm, 40 mm × 60 mm, 60 mm × 60 mm, thickness: 1.5 mm.
Brace tube	50 mm × 25 mm, thickness: 3 mm.
Vertical tube	35 mm × 35 mm, thickness: 2 mm.
Foot board tube	25 mm × 50 mm, thickness: 3 mm.
Front panel	Thickness: 1.5-2 mm.
Front board	Thickness: 4 mm.
Panel holes diameter	8 mm
Weight	30 kg, 31 kg, 32 kg, 33 kg.
Packing	With cartons, pallet, air bubble film or as request.
