New Design Police STRAIGHT Barricade Best Selling Metal Road Safety Barriers with Factory Price
New Design Police Barricade Best Selling Metal Road Safety Barriers with Factory Price

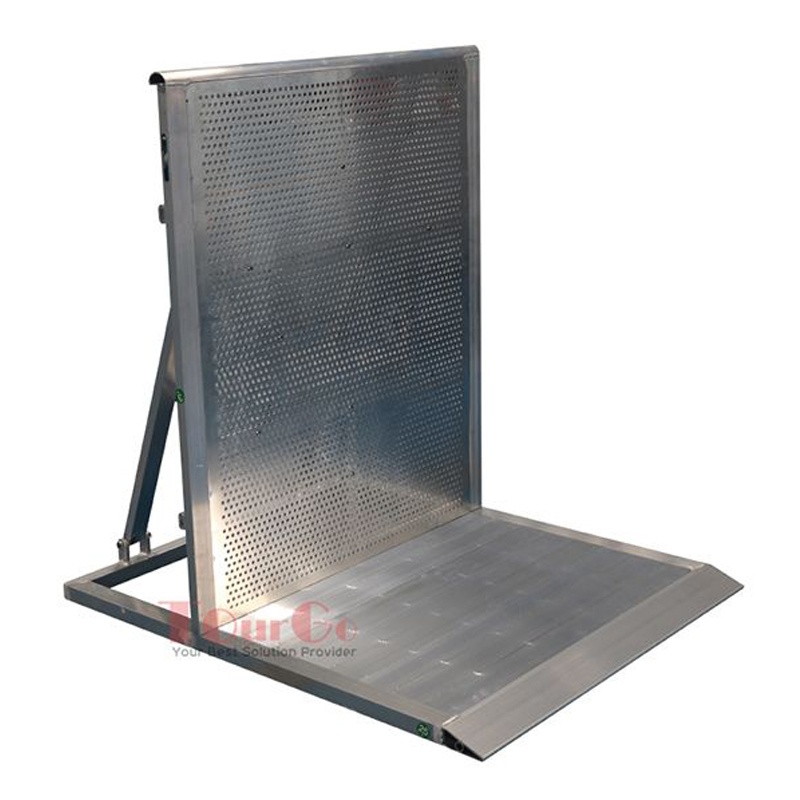

The Aluminum Barrier is a lightweight crowd control system made of aluminum. The Barrier has a self-weight of only 34 kg per 1 m section. The smooth round top bar and the bottom bar inside of slop incorporate a steel 15 mm slot pin that provides easy connection points for the Barriers. In order to strong the barricade connection, there are also 2 sets interlock and 2 sides bolt connection in case of uneven ground . All profiles have soft, rounded edges for maximum comfort. The design load of the barrier is 10528N/m1.
| Material | Aluminum 6082-T6 |
|---|---|
| Surface | Mill finish (silver) , black powder coated, etc. |
| Size (H × W × D) | 1.2 m × 1.0 m × 1.2 m, customer sizes are also available. |
| Folding size (H × W × D) | 1210 mm × 1100 mm × 180 mm |
| Top semi-circle tube | 40 mm, 50 mm, thickness: 2 mm, 3 mm. |
| Frame tube | 25 mm × 50 mm, 40 mm × 50 mm, 40 mm × 60 mm, 60 mm × 60 mm, thickness: 1.5 mm. |
| Brace tube | 50 mm × 25 mm, thickness: 3 mm. |
| Vertical tube | 35 mm × 35 mm, thickness: 2 mm. |
| Foot board tube | 25 mm × 50 mm, thickness: 3 mm. |
| Front panel | Thickness: 1.5-2 mm. |
| Front board | Thickness: 4 mm. |
| Panel holes diameter | 8 mm |
| Weight | 30 kg, 31 kg, 32 kg, 33 kg. |
| Packing | With cartons, pallet, air bubble film or as request. |
Loading Test:
Packing and Shipping
