LED Truss System Display Hanging LED Wall Ground Support Stand Compatible with F32,F33,F34 Spigot Truss or 12 Inch Bolt Truss

TourGo Ground Support Stabilizing T-Base for LED Wall Stacking is ideal when you need a base that takes up a minimal amount of storage and cargo space. This allows easy and quick setup for LED panel walls, saving time and effort rather than most conventional and cumbersome mounting stands. This Ground Support T-Base supports a single F32 or 12-inch bolt on the I-Beam Truss Segment that can be mounted to the center of the base. Each Ground Support T-Base can be linked with multiple units to support lengthier LED stage setups.

The Ground Support Base is rugged and indestructible made from steel materials. Each T-Base is equipped with three height-adjustable leveling feet (that can be removed) when you want to bolt the hardware into the floor for permanent installations. This base can be supported by Telescoping LED Wall Panel Pole Clamps (Sold Separately).

DISCLAIMER: It’s recommended that they be weighted down at the rear of the base as a safety measure to prevent accidents.Truss, clamps, video panels, and any other third-party products shown are for display purposes only and are not included. To secure your system and prevent falling over of your led support system ballast is needed on every base unit (each meter). The amount of ballast is depending on the height and weight of your screen.

Recommended Ballast loading per base unit every Meter :

Height Screen     Ballast LBS
2.00 Meter           25 lbs
2.50 Meter           50 lbs
3.00 Meter           75 lbs
3.50 Meter           125 lbs
4.00 Meter           150 lbs

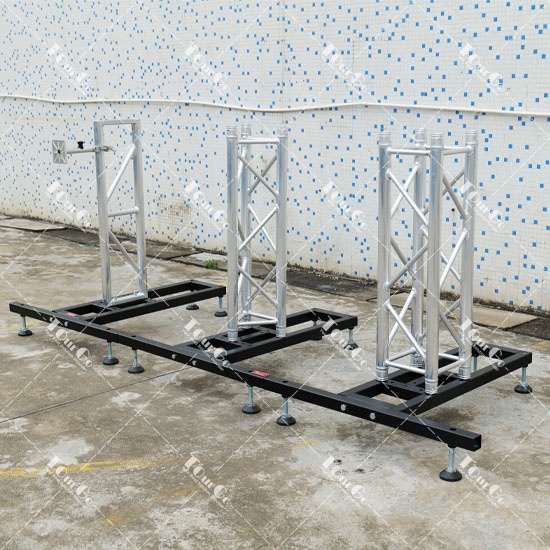

Product Display:

This Ground Support T-Base supports a single F32 or 12-inch bolt on the I-Beam Truss Segment:

Also can support F33, F34 Spigot truss or 12 inch bolt triangle truss, square truss, or 12inch Thomas Truss, GT/THOMAS/TOMCAT model truss(custom)
