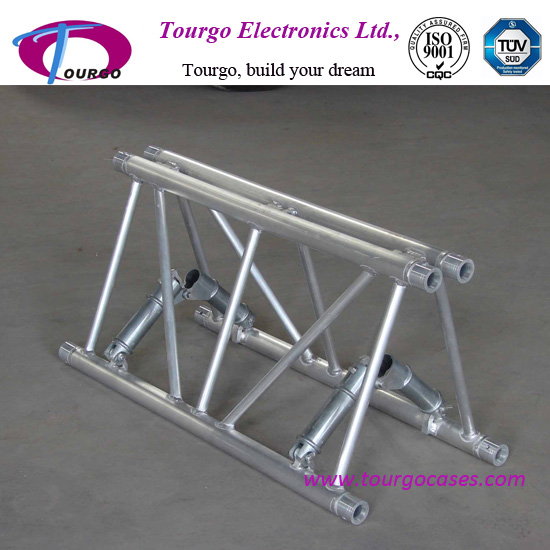

580x530mm Folding Truss

580x530mm Folding Truss
  • 580x530mm Folding Truss
  • 580x530mm Folding Truss
  • 580x530mm Folding Truss
  • 580x530mm Folding Truss

580x530mm Folding Truss


  • Product No.: TG-F53

Details

Feature:
– Tolerance free conical connector
– High stability aluminium alloy
– Excellent load bearing capacity
– Low dead weight
– High wear resistance
– Saving stock and trucking space
– TuV approved
– 4mm Wall thickness of 50mm main tube


Description:

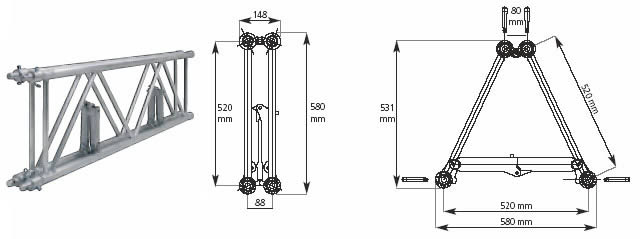

Length Range: 500mm,1000mm,1500mm,2000mm,2500mm,3000mm
Main Tube: 50*4mm
Brace Tube: 25*3mm
Aluminum Alloy: 6082-T6




The folding Truss is designed as heavy-duty system for use in the big and large project at outside. It is the ideal system for structures with longer spans.



Packing Dimension
Model Length(m) Packing Size(mm) Weight(kg)
TG-F53X050 0.5  500 x 1000 x 100 9.8
TG-F53X010 1  1000 x 1000 x 100 14.9
TG-F53X015 1.5  1500 x 1000 x 100  20.1
TG-F53X020 2  2000 x 1000 x 100  25.9
TG-F53X025 2.5  2500 x 1000 x 100  28.2
TG-F53X030 3  3000 x 1000 x 100  31.6
