Tourgo light weight interpreter booths for 3 persons

Interpreter booths are designed to create the best acoustic environment for the distinction of various languages spoken simultaneously, It provides the perfect visual and two-way audio communication between the interpreters and the participants in various meetings conferences.

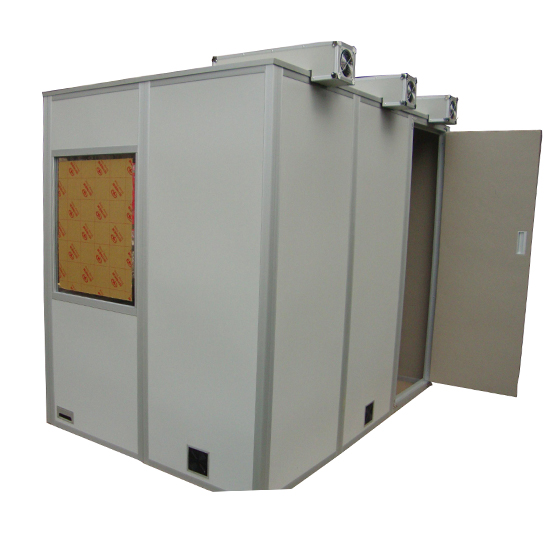

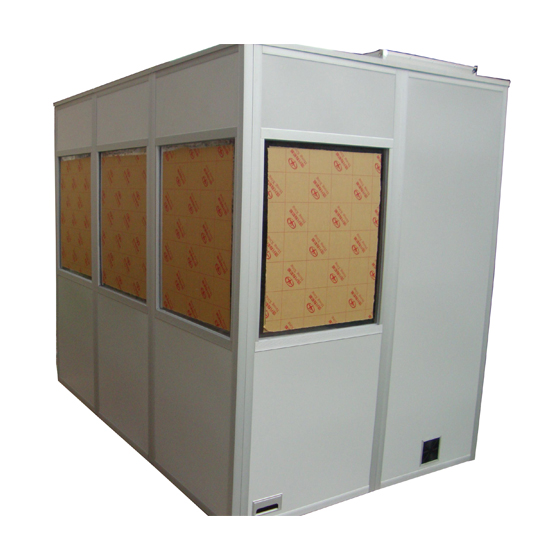

The light weight interpreter booths  TG-3LBOOTHS is a light weight, modular, easy to mount interpreter booth for 3 persons, but can be extended for up to 4 persons, using the optional extension sets. 1 or 2 persons can easily build the booth without any tools. The TG-3LBOOTHS complies with the ISO 4043 norm for mobile interpreter booths and is equipped with table and 2 cable ducts.

Specification:

Standard suited for 3 persons
Standard size:W2400xD1600xH2000 mm
Weight approx. 280KG
Standard 15 panel configuration
Extendable up to 4 persons
Ventilation system integrated in roof panels
Outer Materials is high density plywood coated with fire-retardant paint
light grey color,  other colors are available on demand.

Package :
Hard flight cases
Dimensions :W2080xD680xH1110 mm
6 swivel wheels with brake

Configuration
1. sound insulation door: Easy opening 180 angle without noise; Outward;

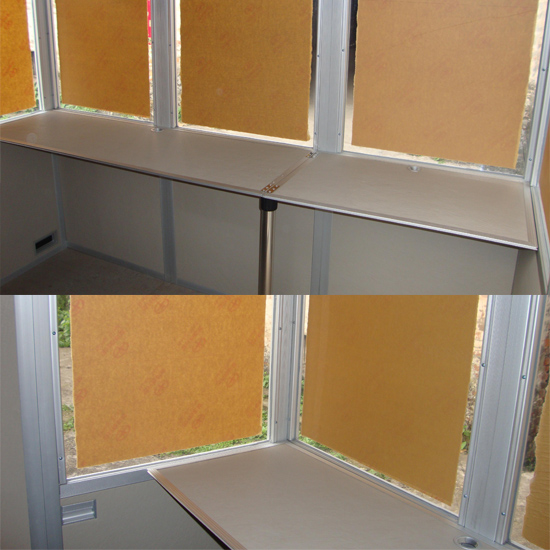

2. windows: Size window is more than 670*800mm (H); Ample sight space; acrylic material ( thickness 6mm; Anti-scratch; Prevent sharp light outside).
3. ventilation system: two silent ventilation system on top (optional), almost silence(< 40dB).

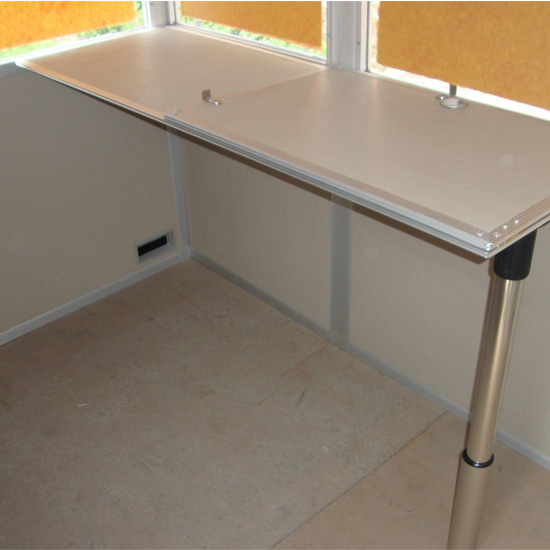

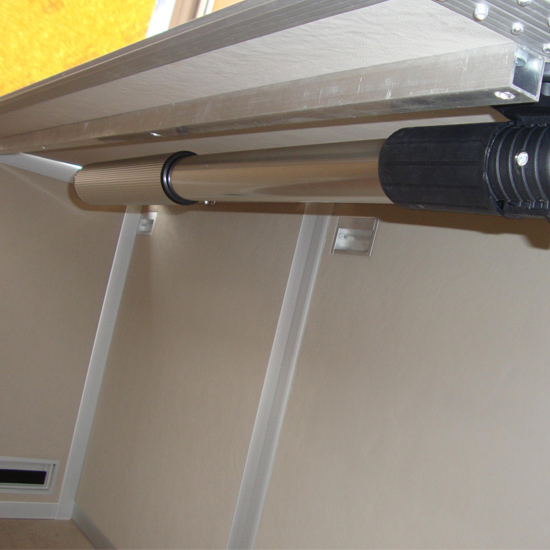

4. work surface: 232cm(L)*50cm(W)*73cm(H); Can bear weight of all equipments
5. cable passage: Dia. 5cm

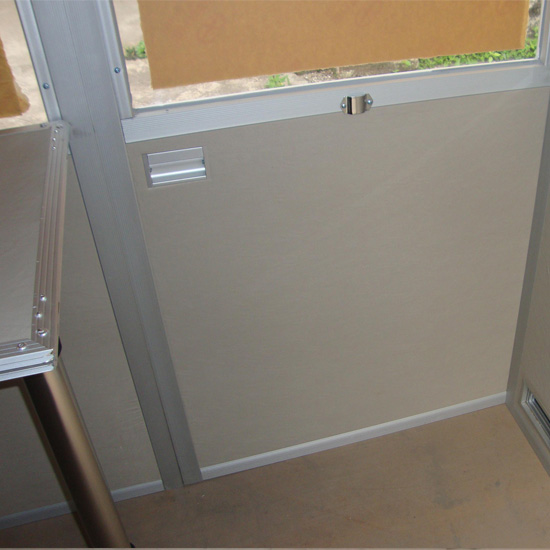

6. standard 10 wall panels(5 of which have windows with acrylic and 1 door panels), 3 roof panels , 2 working table. the booth also have 2 cable ducts

Capacity of sound-proof
The capacity of sound proof of our booth is completely over ISO-4043 standard, at least 30 dB

Benfit
A. Easy installation, can be performed by 1-2 person
B. Very comfortable working environment
C. Clear view window (acrylic)
D. Durable build
E. The table is easy to install without using tools at all
F. Good looking and Comfortable
G. Suitable for all types for conference systems
